Six-Axis Vision Inspection Production Line

Product Overview：

• Support for Courses and Key Concepts Meets the teaching needs for courses or topics such as Python programming, machine learning, deep learning, digital image processing, computer vision, vision-based robotic applications, and sensor control.

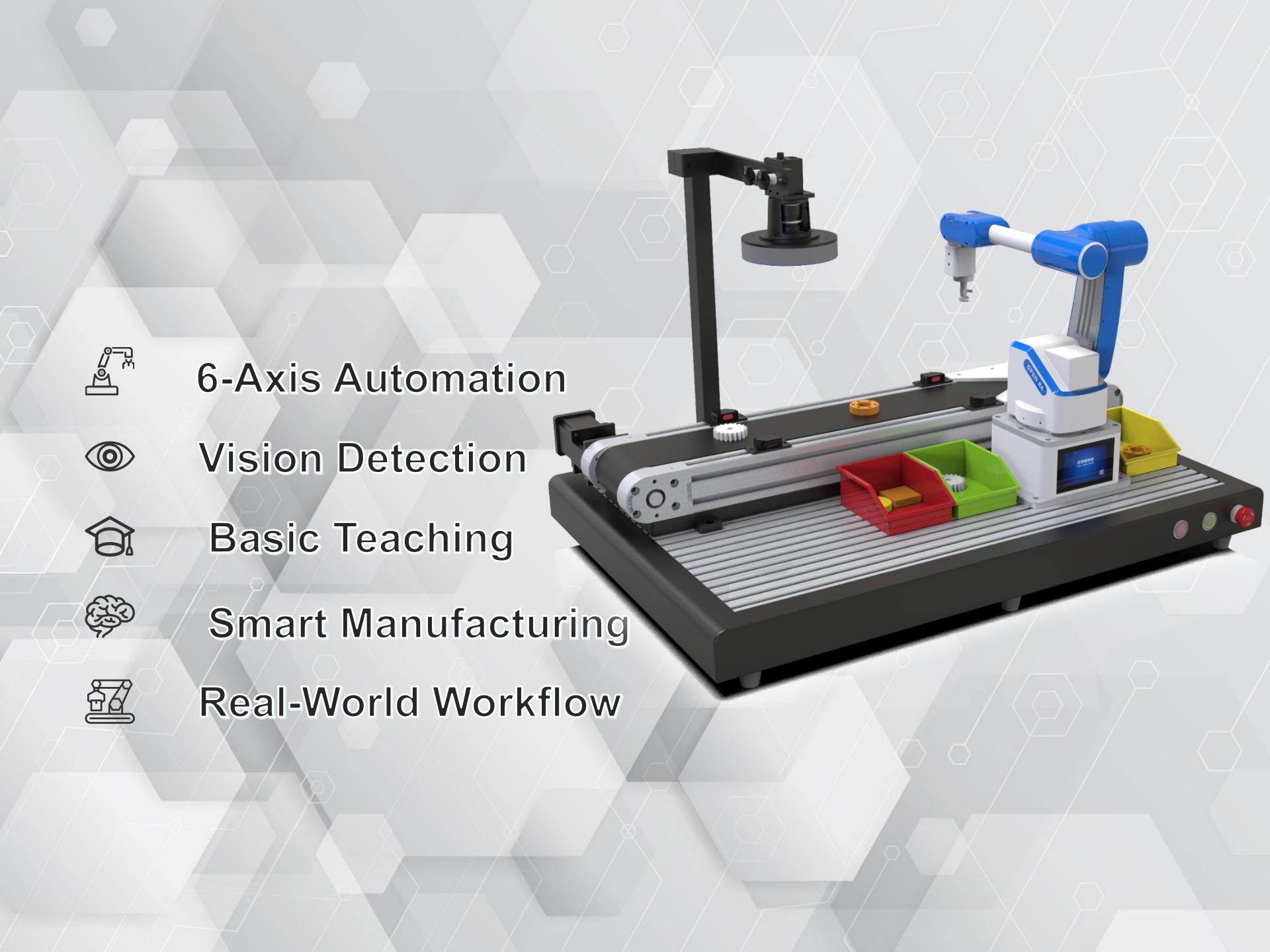

• Integrated Platform Design The production line platform integrates the robot, vision system, and multiple sensors in a unified design. The entire system can be placed directly on the desktop for easy operation during experiments and teaching.
• Flexible Component Installation & Diverse Scenarios All components use modular installation, allowing free positioning to create diverse experimental training scenarios that cater to different teaching needs.
• Powerful Computational Support The edge computing terminal provides computational power, supporting the deployment of mainstream AI frameworks such as PyTorch and TensorFlow, ensuring efficient computational performance for experiments.
• Integration of Various Technologies Combines deep learning, machine vision, robotic control, vision-robot collaboration, and production line motion control to provide a comprehensive learning experience for students.
• Built-in AI and Vision Algorithm Library The built-in AI and vision algorithm library includes object classification, target detection, defect detection, OCR character recognition, and other use cases, fulfilling the needs for both basic application and development teaching.

Product Features and Functions：

1. Open Experiment Environment

The experiment code is written in the Jupyter Notebook environment with the following features:

• Interactive Programming Teachers and students can perform interactive programming experiments directly in the browser.
• Markdown Editing Support Supports Markdown editing, cells for coding, and text writing, completing title, mathematical formulas, etc., making it easier to explain code, especially for teaching purposes. Code can be separated into different cells for debugging and monitoring variable values and types interactively.
• Terminal Command Verification The provided experimental environment can verify experiments through commands executed in the terminal.
• Multiple Students Using Different Models The environment supports multiple students calling different models to identify samples, meeting the requirements of various experiment projects.
• Support for Multiple Frameworks Supports multiple deep learning frameworks, including but not limited to TensorFlow, PyTorch, etc.
• Teacher’s Flexible Settings Teachers can set up and leave code modules empty for students to complete the programming exercises.

2. Open Source Code

• Open Software Framework & Algorithm Code The entire software framework and algorithm-level source code are open, supporting secondary development. Full experimental manuals and technical documentation are provided to help users with development.
• Product Documentation Provides documentation related to the software and hardware architecture and design methodology.

3. Graphical Interactive Software

• Software Overview The 2D machine vision software uses Hikvision Vision Master software, with an intuitive graphical interface. Function icons are clear and easy to understand. Drag-and-drop operations allow quick construction of vision solutions, with independent module status indicators displayed in real-time.
• Key Features and Parameters:
  • Includes nearly 1,000 image processing operators and many interactive development tools, with over 130 modules, supporting various operating systems and image capture hardware.
  • Users can create vision solutions based on needs and customize operation interfaces for personalized use.
  • Compatible with GigE Vision and USB3 Vision protocols, supports various camera brands, and allows for both local image processing and camera data image processing.
  • Easy secondary development, saving up to 90% of the code through simplified interfaces. New controls can be imported into Visual Studio with one click and embedded in QT, MFC, WPF, and WinForm interface development.
  • Supports user-defined module development. Users can encapsulate custom algorithms as VM modules for drag-and-drop use.
  • Supports common industrial communication protocols such as TCP/IP, ModBus, serial, UDP, and Ethernet/IP, and is compatible with mainstream PLC models.

4. Machine Vision and Object Recognition

Using the open-source OpenCV vision library for algorithm development, applicable for scenarios like document recognition, license plate recognition, character recognition, object identification, defect detection, and more.

5. Robot Hand-Eye Calibration

Introducing a vision system to the robot enables autonomous, intelligent motion, allowing the robot to perform tasks such as waste sorting, logistics handling, palletizing, and object sorting.

6. Vision-based Robotic Applications

Combining robotic arms with vision systems to recognize targets of various sizes and appearances, supporting applications like object sorting, smart palletizing, object recognition, and character recognition.

7. Production Line System Integration

The production line integrates stepper motors, photoelectric sensors, and edge computing terminals through an IO controller to control the start, stop, pause of the production line, trigger visual system photo capture, and control robot grabbing actions, completing a full process in the integrated system operation.
